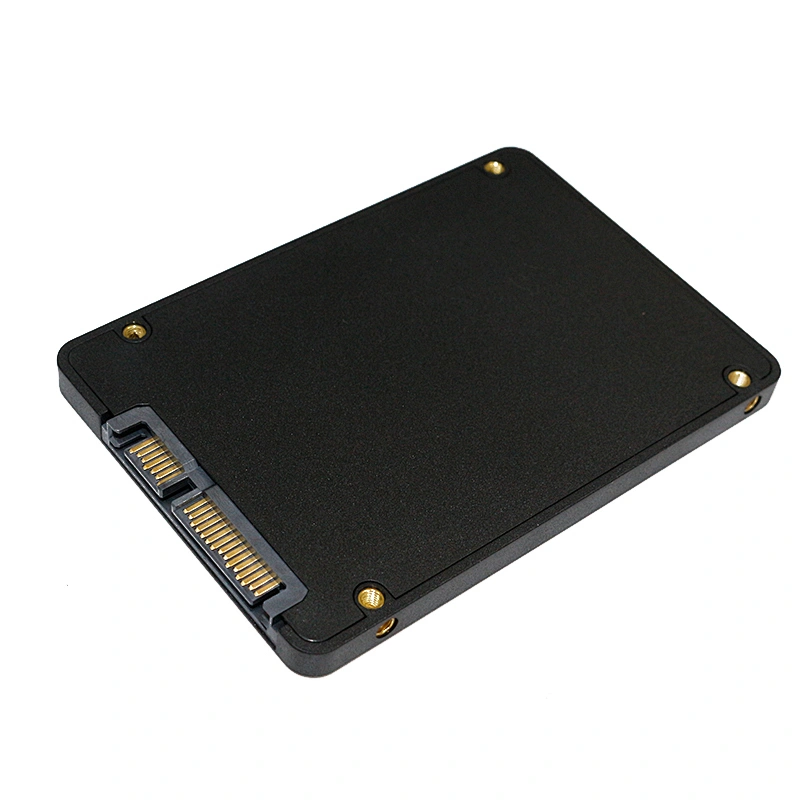

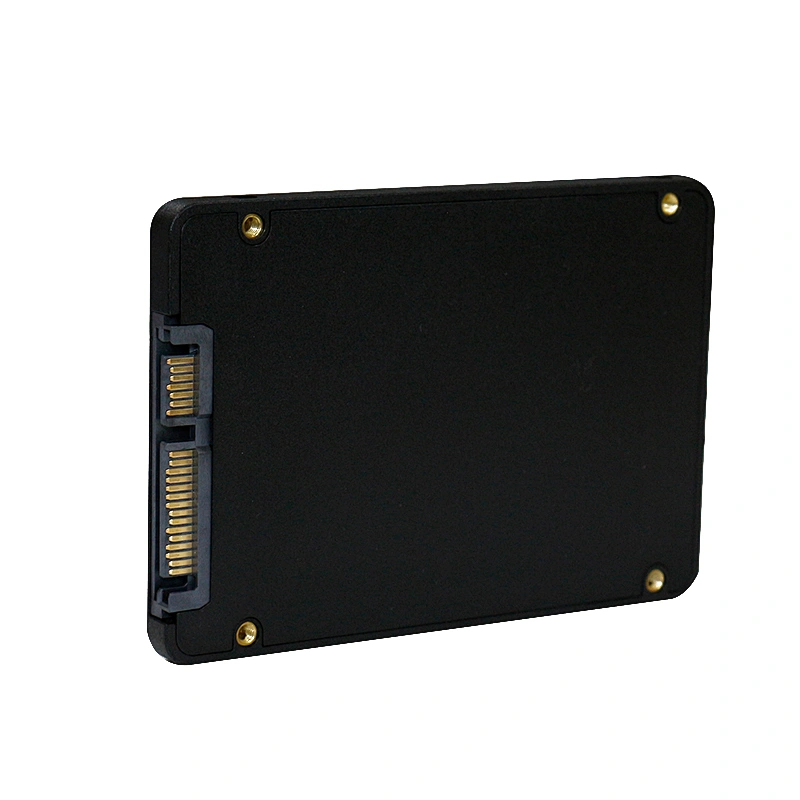

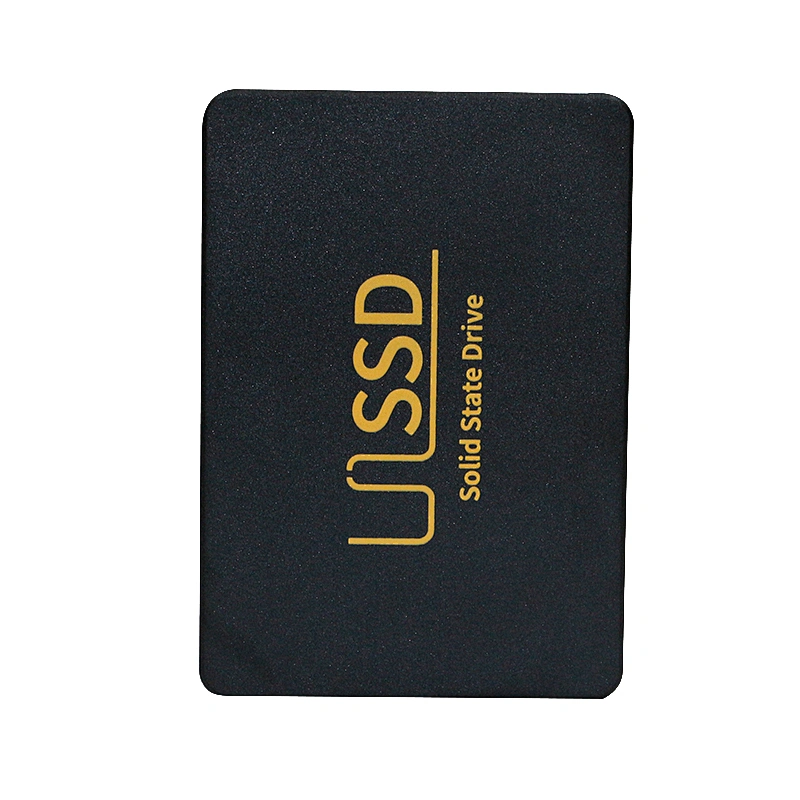

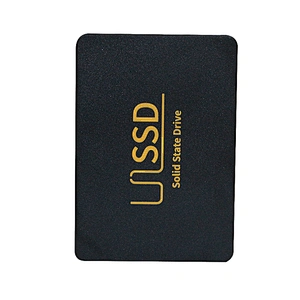

Hard Drive High Speed 2.5 Inch SATA III Hard Disk 500/500 Mbps SSD

Hard Drive High Speed 2.5 Inch SATA III Hard Disk 500/500 Mbps SSD

Model NO.: UL-SATA3-02

Quantity:

Product Description

ULIKE DESIGN Co. Limited founded in China.

We are a professional electronics supplier specializing in the design and sales of consumer electronic products including:USB Flash Drive,SD Card,TF Card,SSD and RAM products By accumulation of over 10 years industry experience.

Ulike Design has set up long partnership relationship with lots of overseas customers. Ulike Design strives to deliver products and services with honesty and speed. We hope to privde cusotmer with private and idea designed products.

Hard Drive High Speed 2.5 Inch SATA III Hard Disk 500/500 Mbps SSD

Application:	Can be used on Laptops, Notebooks, Advertising Machine, ATM machine, etc..
SATA protocol:	Compliant with SATA 6Gbp/s specification(compatible with SATA 1.5/3.0/6.0Gb/s interface)
support system:	Windows 8/Windows 7/Windows Server 2003 (32 bit and 64 bit), Vista (SP1 and above), XP (SP2 and above), MAC OSX and Linux
Data retention:	>10 years
MTBF:	> 1000,000 hours
Trustworthy and Reliable:	Supports TRIM command, Garbage Collection technology, RAID, and ECC (Error Checking & Correction) to provide the optimized performance and enhanced reliability
Storage temperature:	-40 to +85°C
Operating temperature:	0°C to +70°C

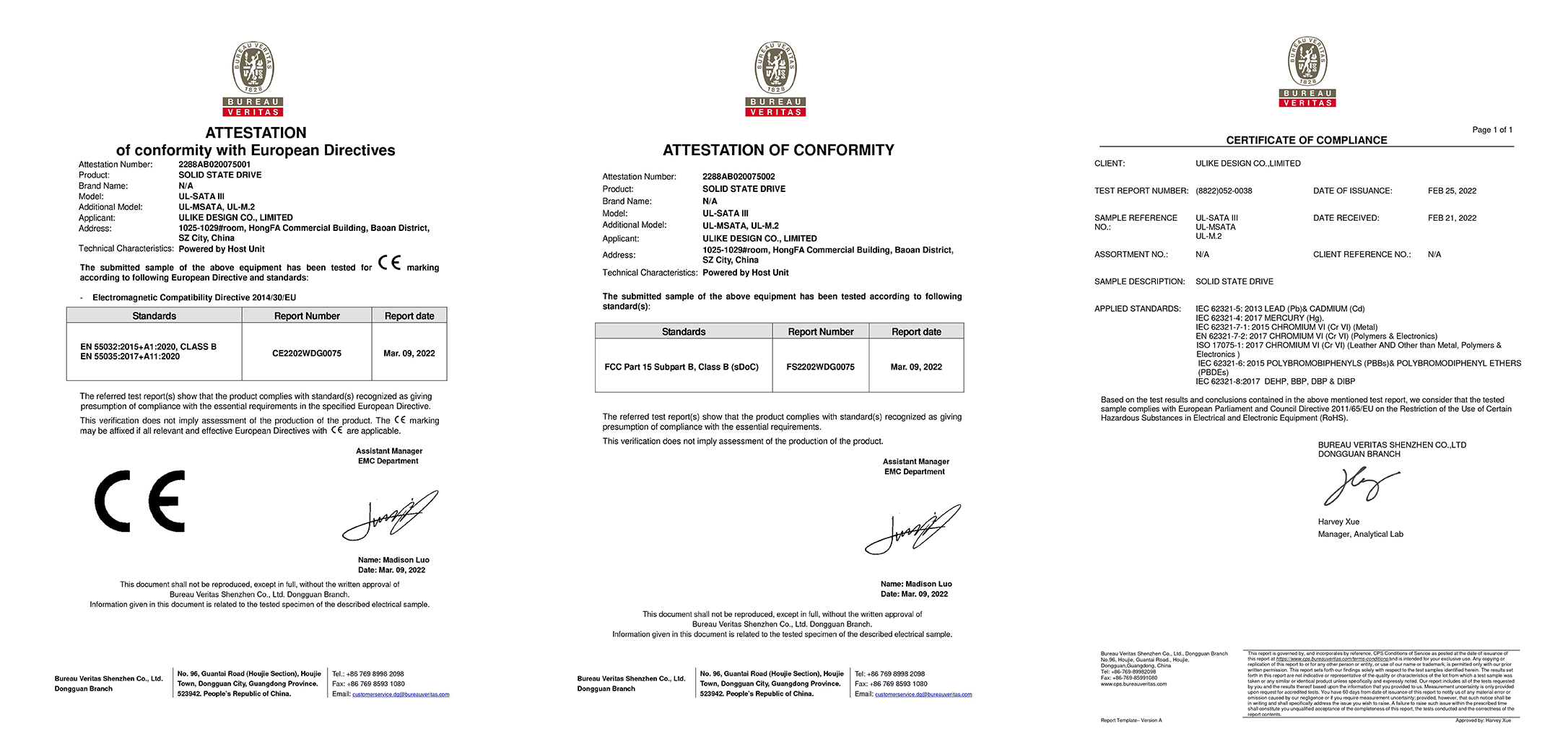

Certificate:	CE,FCC,ROHS
Warranty:	3 years

Key Specifications/ Special Features:

Specifications:
High speed SATA3 SSD, with R/W speed: 500/400MB/s
Can be used on laptop, desktop and enterprise device
Compliant with SATA 6Gbps specification
Capacity: 60GB-4TB
Low power consumption
Noise free, shock resistant
ECC correction code
MTBF: more than 1,000,000 hours
Physical dimension: 100.2*69.8*9.5mm
Certifications: CE, RoHS Directive-compliant, FCC
Maximum read 500MB/s, maximum write 500MB/s
Random write (4k): up to 64,000 IOPS

Order terms:
Price terms: EXW Shenzhen
Packing terms: retail or bulk packing
Payment terms: T/T and Western Union
Delivery time: 2- 4 working days
Warranty: 3 year
OEM and ODM are also available

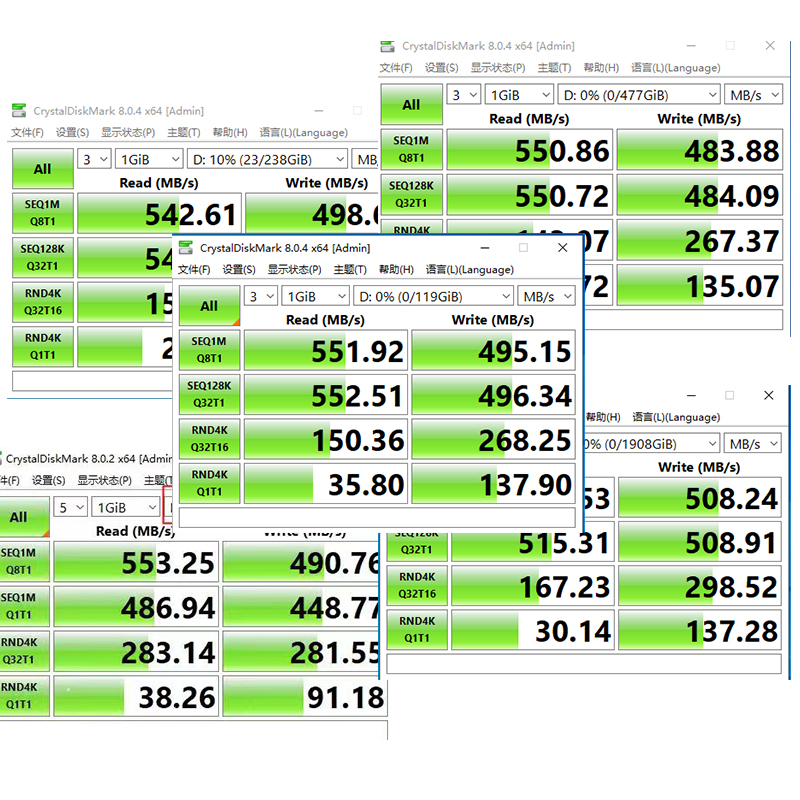

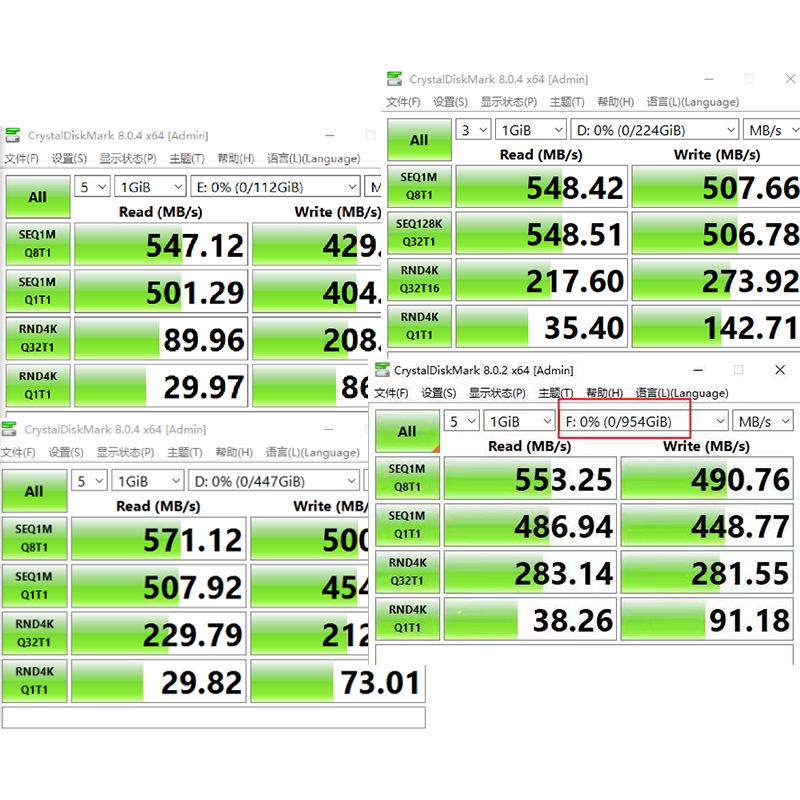

About SSD performance test

1.Our speed test is base on SATA 3.0 interface
Difference between SATA I, SATA II and SATA III
SATA I (revision 1.x) interface, formally known as SATA 1.5Gb/s , is the first generation SATA interface running at 1.5 Gb/s. Max speed 150MB/s.
SATA II (revision 2.x) interface, formally known as SATA 3Gb/s, is a second generation SATA interface running at 3.0 Gb/s. Max speed 300MB/s.
SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. Max speed 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface.
If sata3.0 SSD tested speed on sata2.0 interface and sata cable, then the result will be inaccurate.

2. Due to different platform or software, the result will be a little difference(we usually use CrystaDisk and AS SSD Benchmark test Our SSD)

Why the capacity display from computer is smaller than original capacity?

1. In factory, we use 1000KB=1MB for calculate, also we use a little space as the Bad Bolck Management software for SSD's stable using, the real capacity will be: Capacity x 0.93, Pls notice that all of the SSD must have the Bad Block Management sofeware for its running well.
Actual capacity calculation: Total storage x 0.93
Factory default setting :1GB=1000MB=1000000KB=1000000000B Computer
system setting:1GB=1024MB=1048576KB=1073741824B

For Example: 360GB SSD
Factory capacity: 360x1000x1000x1000=360000000000B
In computer show actual capacity: 360000000000B/1024/1024/1024=335G Fast calculation: 360Gx0.93=335G
